DIY Center Channel Speaker with HiVi F5 / SD1.1A

General Info:

• Four - HiVi F5 Kevlar MidBass Drivers
• Two - HiVi SD1.1A Dome Tweeters
• Fully Shielded
• 170 watts RMS @ 4ohms
• 2nd / 3rd Order crossover at 4kHz
• Frequency Response: 60Hz - 20kHz
• Overall Dimension: 43"x 7"x 14"

The enclosure design for the center channel is shown below.

Figure 1: HiVi Home Theatre Center Channel Speaker Enclosure Drawing



The crossover design for the center channel speaker and the modeled frequency response is shown below.

Figure 2: HiVi Home Theatre Center Channel Speaker Crossover Schematic

2-Way Crossover Network
Low-Pass (LP) Filter: 2nd-Order Butterworth, Corner Frequency: 4000 Hz
High-Pass (HP) Filter: 2nd-Order Butterworth, Corner Frequency: 4000 Hz
C1 = 3.3 uF, Polypropylene, 0.00764 ohms
C2 = 8.2 µF, Polypropylene, 0.00548 ohms
C3 = 15 µF, Polypropylene, 0.0048 ohms L1 = 0.27 mH, Air Core(#18), 0.215 ohms
L2 = 0.13 mH, Air Core(#18), 0.16 ohms
Woofer Impedance Equalization Circuit
Req = 2.4 ohms
Ce = 25 uF
L-Pad Circuit: 1.32 dB
Rp1 = 0.51 ohms
Rp2 = 5.1 ohms

DIY Center Channel Speaker Construction

The center channel enclosure construction is shown in the photographs below.



The finished center channel cabinet is then primed and painted using several coats of an oil based epoxy paint and then finished with red oak trim.



Photograph 6: DIY HiVi Home Theatre Speakers

7" LCD DIY Projector

This is a 7” Projector using a 80W LED 7000lm with 36V@2.8A of power source. Here below are the components used:

LCD : Innolux 7" LCD
Fresnel's : f120mm / f220mm
Projection lens: f265mm triplet
Condenser Lens: f127mm condenser
Light Engine: 80W HP-LED (arrangement 8x10, [1 led is 0.35A and 3.6v max])
LED Driver: 110W constant supply (variable to adjust 50W-110W max)
Heat sink (Fans
12V supply for LCD

This one is 14.5" X 9.5" x 5.5" internal dimensions, straight through setup.
Projected image 80" diagonal at 9ft



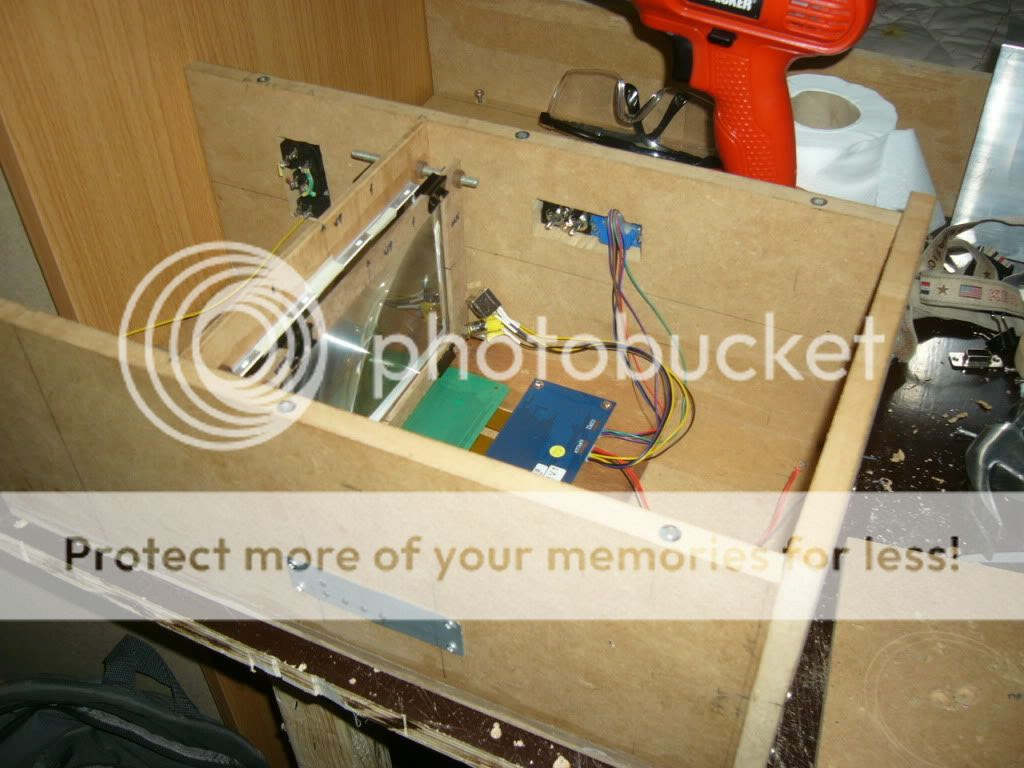

Here's the picture my parts to be use.
